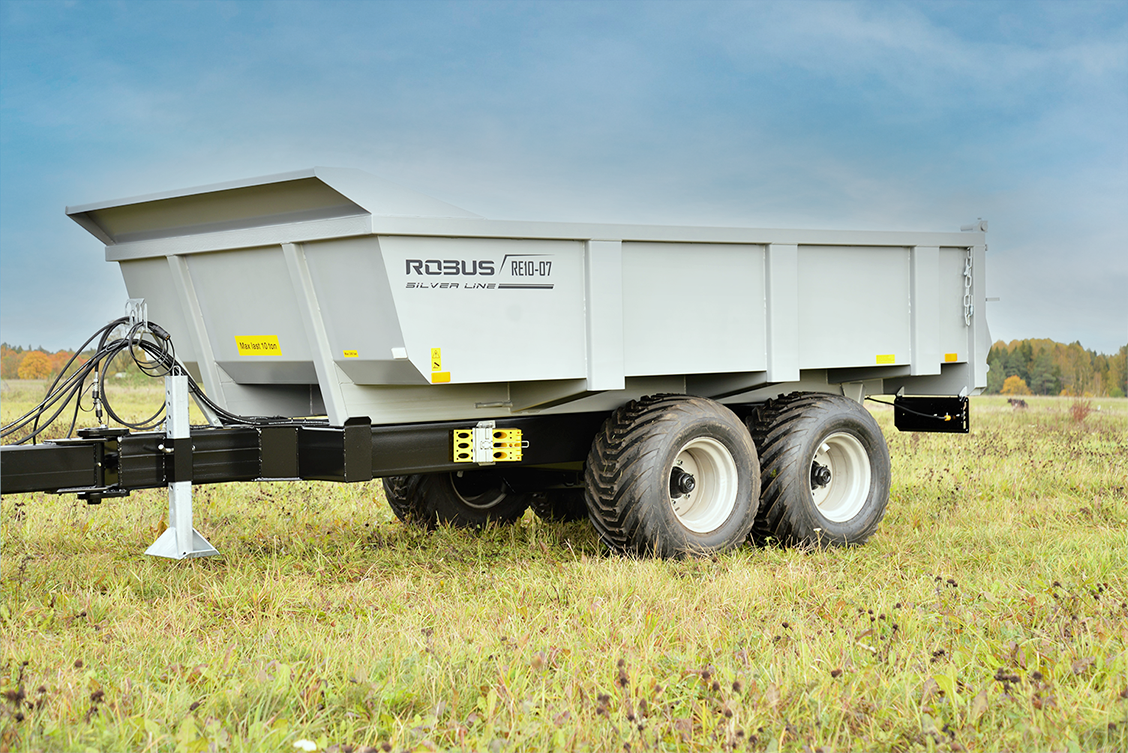

Photos are illustrative. For a trailer with detailed accessories list, please send price request.
This small excavator dumper trailer has a very good maneuverability. It is designed for working on narrow streets, small construction sites etc.
| Model | RE10-07 |
| Length(mm)(With HSD01) | 5685 |
| Width(mm) | 2550 |
| Height(mm) | 1970 |
| Internal measurements of a platform(mm) | 3970x2380x700 |
| Capacitance(m3), ()-with volume backdoor | 6,6 |
| Capacitance with extensions (m3), ()-with volume backdoor | 13,2 |
| Base | 3520+1000 |
| Empty weight(kg) | 2505 |
| Max load capacity(kg) | 10000 |
| Total weight(kg) | 12505 |
| Hitch load(kg) | 1800 |
| Axel sum | 2 |
| Permissible axel load(kg) | 5353 |
| Hub/axel | 70x70, 6bolts |
| Suspension | Mechanical bogie |
| Brake type | 300x90, 0; 2 or 4 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | |
| Standard wheels | 400/60-15,5 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 5 |
| Thickness of box’s side sheet(mm) | 5 |
| Optional wheels | 500/50-17 |
For a trailer with detailed accessories list, please send price request.
